Description

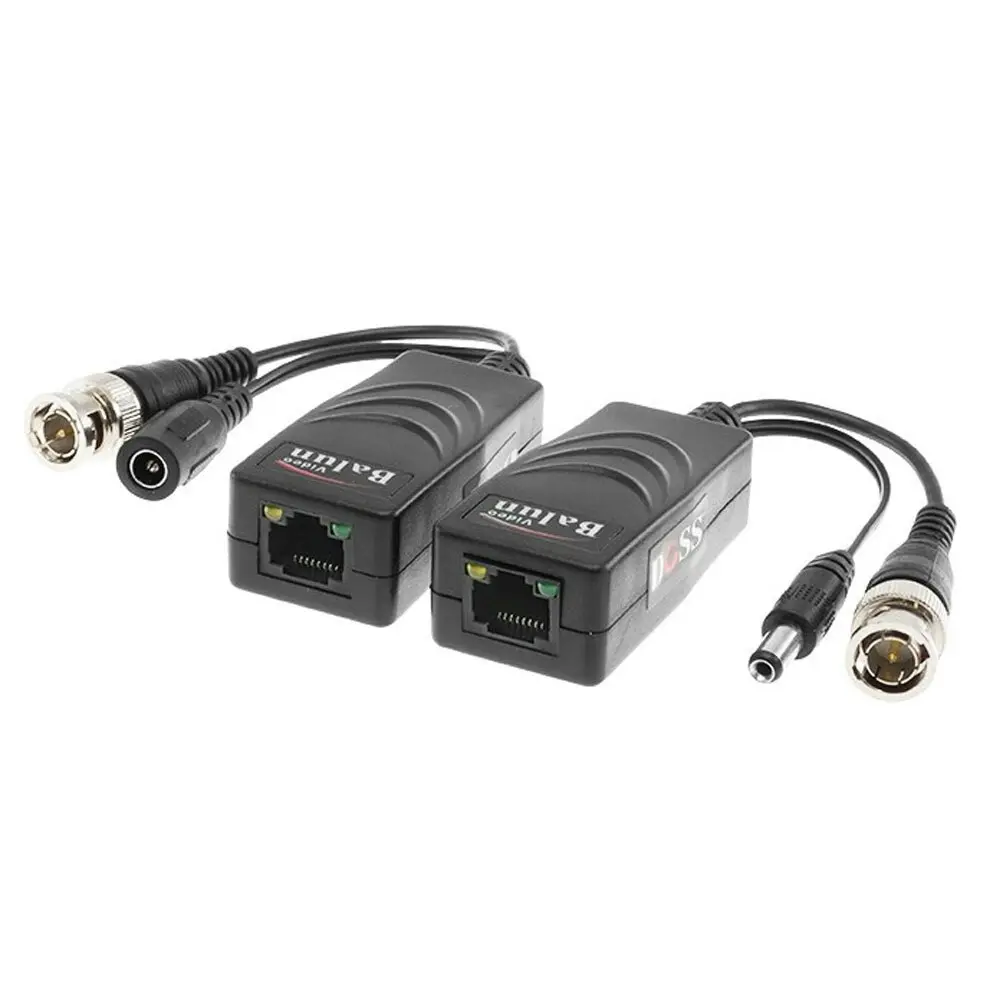

250M RJ45 Jack Passive Video & Power Balun is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.
The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits.
Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.
-
Single channel HD video & Power transmitter & receiver
-
Real-time transmission over UPT cat5e/ 6
-
NTSC, PAL & SECAM video format compatiable
-
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
-
Colour video max up to 440m for HD-CVI 720P camera
-
Colour video max up to 210m for TVT HD-TVI 720P camera
-
Colour video max up to 300m for AHD 720P camera
-
Male BNC with extended 150mm mini-coax pigtail
-
RJ45 jack for UTP cable
-
Built- in TVS for surge protection
-
Wave filter design, Anti-static design
-
Lightning protection design Grade: III
-
60 dB crosstalk and noise immunity
-
ABS engineering plastic housing
Applications
-
Security Monitoring System
-
Multimedia Network Teaching System
-
Medical Monitoring Display System
-
Industrial Automation Control System
-
Banking, securities, financial information display system
-
Remote Network Server Monitoring
-
Department Store Security
-
Casino Security
-
Hospitals, Airports and banks
-
School Campuses
Includes:
-
1x Jack Video & Power (Male) Balun
-
1x Jack Video & Power (Power) Balun
Please note: CAT 5e Cable is not included.
