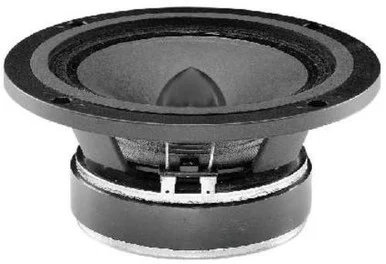

B&C Speakers 6 PEV 13 Midrange

Description

This item is brand-new, factory sealed.

* High efficiency 6″cone midrange, ideally suited for three & four way systems.Very smooth response from 400 Hz to 8 kHz.
* An aluminium phase plug increases axial sensitivity & controls high frequency dispersion.
* Nominal Diameter 170 mm (6.5 in.)
* Nominal Impedance 8
* Minumum Impedance 6
* Power Handling: Nominal 120 W (300-3000 Hz)
* Continuous Program 240 W
* Sensitivity (1W/1m) 99 dB
* Frequency Range 150-8000 Hz
* Voice Coil Diameter 38 mm (1.5 in)
* Winding Material Aluminium
* Former Material Fiber Glass
* Winding Depth 7 mm (9/32 in)
* Magnetic Gap Depth 6 mm (1/4 in)
* Flux Density 1.4 T
Thiele & Small Parameters
* Fs 126 Hz
* Re 5.2 .
* Qes 0.39
* Qms 4.6
* Qts 0.36
* Vas 6 dm 3 (0.21 ft 3 )
* Sd 132 cm 2 (20.5 in 2 )
* .0 3%
* X max 0.6 mm
* X var 1.5 mm
* Mms 6 g
* Bl 8.2 T m
* Le 0.6 mH
* Mounting & Shipping Information
* Overall Diameter 187 mm (7.4 in)
* Bolt Circle Diameter 172 mm (6.7 in)
* Baffle Cutout Diameter 145 mm (5.7 in)
* Depth 78 mm (3.1 in)
* Flange & Gasket Thickness 11 mm (7/16 in)
* Net Weight (1 unit)2.4 kg (5.3 lb)
* Shipping Weight (4 units)10.9 kg (24 lb)
* Shipping Box (4 units)405x225x210 mm, (15.9×8.8×8.3 in)
(1) For different impedances, please ask.
(2) 2 hours test made w/continuous pink noise signal (6 dB crest factor).
Power calculated on rated minimum impedance.
(3) Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
(4) Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance.
