Description
This item is brand-new, factory sealed.

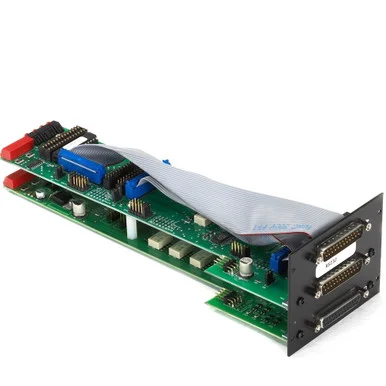

Black Box SM265A, 2 Unit A/B Switch Card
- Pick a card, any card
- A/B Switch Cards are available for RS-232, video, fiber optic, and CAT5e/CAT6 connections
- The card featured here is the DB25/RS-232
- Use the system for both new and legacy applications
- You can add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 and 75-ohm video connections
- Brand: Black Box
- Model Number: SM265A
- UPC: 822088277439
- Manufacturer: Black Box Network
- Warranty Description: No Warranty
- Item Weight: 1 Pounds
- Style Name: Music
Pick a card, any card. A/B Switch Cards are available for RS-232, video, fiber optic, and CAT5e/CAT6 connections. The card featured here is the DB25/RS-232. Use the system for both new and legacy applications. You can add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 and 75-ohm video connections. Secure and fallback switching. For fail-safe operation, all the cards (except those noted) use proprietary latching or micro-mirror relay switching technology – which means data can continue to pass through even if the power has been cut off. Because the cards perform Layer 1 switching, the system operates independently of data rates, protocols, formats, or signal levels. The non-latching fiber cards fall back to a Port C (chassis) to Port A connection when the power fails. When power is restored, the non-latching switch card reconnects Port C to the originally selected port (A or B). These types of cards are typical when you want a fallback or failover connection during power outages. Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches. Ordering Instructions: First, order the chassis… Pro Switching System, 2U, 18-Card (SM260A) Next order at least one power supply Power Supply Cards: Redundant Power Supply Cards (NOTE: cards requires two chassis slots.): 100 – 240-VAC Input (SM261A-VAC) -48-VDC Input (SM261A-VDC) Or order: AC External Adapter Card (SM261A-CARD) ( NOTE: card requires one chassis slot.) And at least one power supply (order two for redundant power)… Power Supply, 120 – 240 VAC, External (SM961A-PS) …then select a Controller Card… RS-232/Ethernet (SNMP) (SM262A) RS-232 Only (SM263A) SNMP Expansion (SM264A) …next choose your A/B Switch Cards… DB25/RS-232 (SM265A) DB25/RS-530 (SM266A) Video F-Connector, Latching (SM276A-LCH) Video F-Connector, Non-Latching (SM267A) Multimode Fiber Optic: ST, Latching (SM277A-MM-ST-LCH) SC, Latching
Features
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Compatibility:
Black Box Pro Switching SM260A Switch Chassis
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
United States
