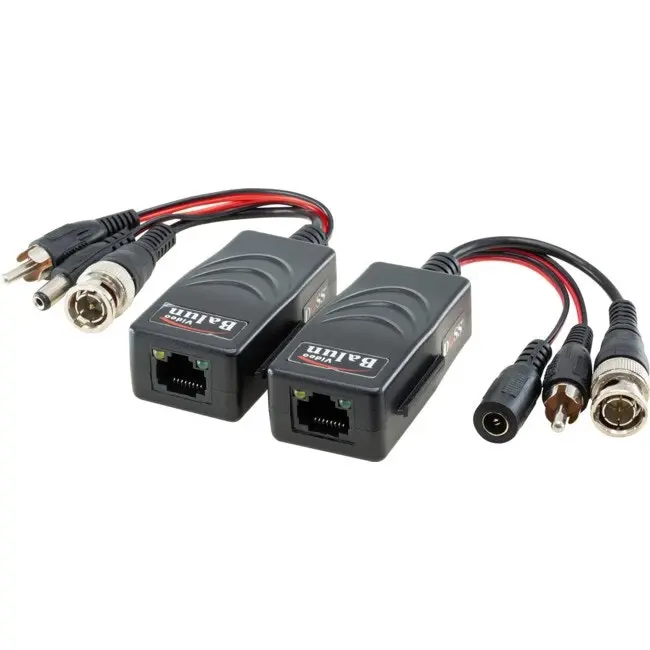

Doss VPAB45HD Video/Audio/Power HD Balun Passive Connector for CCTV Camera Black – Home & Garden

Description

The VPAB45HD is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video, power and audio signal via one cost-effective Unshielded Twisted Paired (UTP) cable.

Features:

• Compatible with all HD-TVI, HD-CVI and AHD analogue cameras

• 1-CH Passive Video, Power & Audio Transceiver (12/24V DC/AC)

• Transmit power signal up to 200m in pairs

• Colour video up to 400m via UTP cat5e/6 cable

• Audio signal up to 600m in pairs

• NTSC, PAL & SECAM video format compatible

• Real-time transmission

• RJ45 Jack for UTP cat5e/6 cable

• BNC plug with an extended mini-coax pigtail

• No power required

• Exceptional interference rejection

• Built-in Transient Voltage Suppressors for surge protection

• Lighting protection design Grade: III

• 50db crosstalk and noise immunity

• Wave Filter Design, Anti-Static Design

• Compact size and easy installation

• ABS engineering plastic housing
