Description
This item is brand-new, factory sealed.

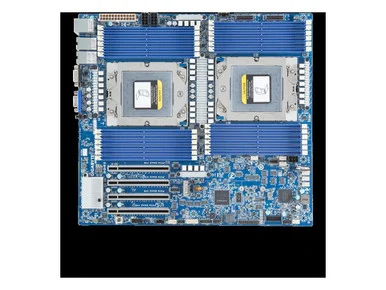

AMD EPYC 9004 DP Server Board Gen5
AMD EPYC 9004 series processors, Max cTDP 300W
Dual processor, 5nm technology
12-Channel RDIMM DDR5, 24 x DIMMs
2 x 10Gb/s BASE-T LAN ports (Broadcom BCM57416)
1 x Dedicated management port
1 x SlimSAS 4i with 4 x SATA 6Gb/s ports
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports
1 x M.2 slot with PCIe Gen4 x4 interface
4 x PCIe Gen5 x16 expansion slots
Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.Form Factor
E-ATXCPU
AMD EPYCTM9004 series processors
Dual processor, 5nm technology
Up to 84-core, 168 threads per processor
cTDP up to 300WSocket
2 x LGA 6096
Socket SP5Chipset
System on ChipMemory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHzLAN
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom BCM57416)
NCSI function supported
1 x 10/100/1000 management LANVideo
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920×1200 at 60Hz 32bpp, DDR4 SDRAMAudio
N/ASAS
N/ASATA
1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1RAID
N/AExpansion Slots
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot. from CPU_0
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
1 x M.2 slot:
– M-key
– PCIe Gen4 x4, from CPU_0
– Supports 2280/22110 cards
2x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x MCIO 8i connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x BuzzerRear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LEDTPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010OS Compatibility
Please refer to OS compatibility table in support pageBoard Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP SettingsPSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connectorOperating Properties
Operating temperature: 10oC to 40oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40oC to 60oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4
Weight
6.00 lb
Warranty Information
1 year
