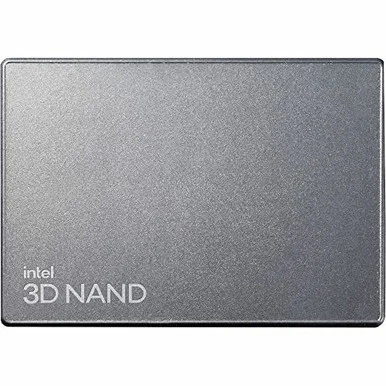

Intel D7-P5520 3.84 TB Solid State Drive – 2.5″ Internal – PCI Express NVMe [PCI Express NVMe 4.0 x4] (263671)

Description

This item is brand-new, factory sealed.

D7-P5520
High-performing, standard-endurance PCIe 4.0 SSDs with capacities up to 15.36 TB, designed for read-intensive workloads.Capacity
3.84 TBForm Factor
U.2 15mmInterface
PCIe 4.0 x4, NVMeLithography Type
144L TLC 3D NANDUse Conditions
Server/EnterpriseRandom Read (100% Span)
1000000 IOPS (4K Blocks)Random Write (100% Span)
200000 IOPS (4K Blocks)Power – Active
15WPower – Idle
5WSequential Bandwidth – 100% Read (up to)
6700 MB/sSequential Bandwidth – 100% Write (up to)
3600 MB/sEndurance Rating (Lifetime Writes)
7.0 PBWMean Time Between Failures (MTBF)
2 million hoursUncorrectable Bit Error Rate (UBER)
1 sector per 10¹⁷bits readVibration – Operating
2.17 GRMS (5 – 700 Hz) MaxVibration – Non-Operating Shock (Operating and Non-Operating)
1,000 G (Max) at 0.5 msecOperating Temperature Range
0^oC to 70^oCItem Dimension (L inchxW inchxH inch)
17 x 12 x 6
Weight
9.00 lb
Warranty Information
5 Years

Specs
