Description
This item is brand-new, factory sealed.

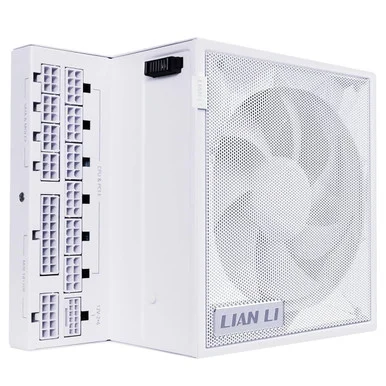

EDGE GOLD
L-shape design tailored for dual chamber cases
80 PLUS Gold efficiency
PCIe 5.1 ready with in-house R&D 12V-26 alloy copper soldered terminals
Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
Removable magnetic fan dust filter
Built with German top-end, industrial-grade EPCOS capacitors
Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
THE POWER FOR DUAL CHAMBER CASES
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
INNOVATIVE L-SHAPE DESIGN
Introducing the worlds first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MODULAR USB & FAN PWM HUBEDGE HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.PRODUCT NAME
EDGE GOLD 850POWER SUPPLY DESIGN
Fully modularCOLOR
WhiteMATERIAL
SteelFORM FACTOR
ATX 3.1CERTIFICATION
80 PLUS GOLD / Cybenetics GOLD / PPLP GOLDMAX. DC OUTPUT
850WCOMBINED +3.3V and +5V
120WCOMBINED +12V
849WINPUT VOLTAGE
100-240VacINPUT FREQUENCY RANGE
10-5A 50-60HzPFC
Active PFC, PF>0.90 under full load at 115Vac, 60HzEFFICIENCY
90.71%MAXPROTECTIVE CIRCUIT
OCP/OVP/OTP/OPP/SCP/UVPCONNECTORS
1 x 24/20-Pin motherboard connector (620mm) x1pcs
1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs
1 x 4+4 Pin CPU connector (750mm) x1pcs
1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
1 x 12V 2X6 450W connector (650mm) x1pcs
2 x 6+2 Pin GPU connector (650mm) x2pcsFAN TYPE
120mm FDB FanFAN SPEED
2000RPMFAN NOISE LEVEL
30.9dBAItem Dimension (L inchxW inchxH inch)
13 x 9 x 6
Weight
7.92 lb
Warranty Information
10 Year
