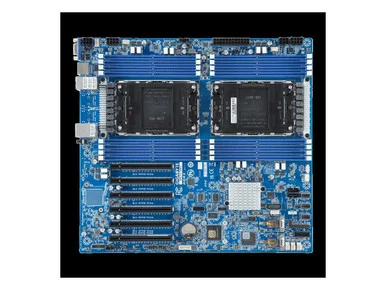

MS73-HB1 (rev. 1.x)
4th Gen. Intel Xeon Scalable DP Motherboard
4th Gen. Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor, LGA 4677
8-Channel RDIMM DDR5 per processor, 16 x DIMMs
Intel C741 Chipset
2 x 1Gb/s LAN ports (Intel I210-AT)
1 x Dedicated management port
3 x SlimSAS with 12 x SATA 6Gb/s ports
2 x 7-pin SATA DOM 6Gb/s ports
2 x M.2 slots with PCIe Gen4 x4 interface
6 x PCIe Gen5 x16 expansion slotsForm Factor
E-ATX
304.8W x 330.2D mm
CPU
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
Dual processor, CPU TDP up to 270W
NOTE:If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4677
Socket E
Chipset
Intel C741 Chipset
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
LAN
2 x 1Gb/s LAN ports (Intel I210-AT)
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920×1200 at 60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
3 x SlimSAS with 12 x SATA 6Gb/s ports
2 x 7-pin SATA DOM 6Gb/s ports
RAID
Intel SATA RAID 0/1/10/5Expansion Slots
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
2 x M.2 slots:
– M-key
– PCIe Gen4 x4, from CPU_0
– Supports 2280/22110 cardsInternal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x M.2 slots
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x BuzzerRear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x RJ45 COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Supported
Please refer to OS compatibility table in support page
Board Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
– Dashboard
– HTML5 KVM
– Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
– Sensor Reading History Data
– FRU Information
– SEL Log in Linear Storage / Circular Storage Policy
– Hardware Inventory
– Fan Profile
– System Firewall
– Power Consumption
– Power Control
– LDAP / AD / RADIUS Support
– Backup and Restore Configuration
– Remote BIOS/BMC/CPLD Update
– Event Log Filter
– User Management
– Media Redirection Settings
– PAM Order Settings
– SSL Settings
– SMTP SettingsPSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10oC to 40oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40oC to 60oC
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MS73-HB1
1 x I/O shield
1 x Quick start guide
6 x Carrier clips
1 x SlimSAS to 4 x SATAIII 6Gb/s cable
Part Numbers:
– I/O shield: 12AIO-MD72HB-00R
– SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R1The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
