Parallax Power FB11 Block Enclosure

Description

This item is brand-new, factory sealed.

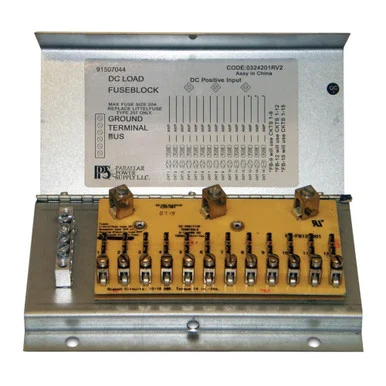

Parallax FB11 Fuse Block Enclosure, 11 Position

• Item Package Dimension: 7.75L x 5.0W x 2.0H inches
• Item Package Quantity – 1
• Product Type – TERMINAL BLOCK

The FB11 is a fuse panel with 11 DC load circuits. This model has 3 large non-fused terminals rated for 2-14AWG wires. These terminals are common to one another and are the supply side for the branch circuits. Branch circuits rated for 20ADC maximum and branch circuit terminals are rated for 12-16AWG. It is built with a galvanized metal chassis and hinged cover. The FB15 can be used with any ?Deckmount? style converter or system without a built-in DC load distribution panel.
