Description
This item is brand-new, factory sealed.

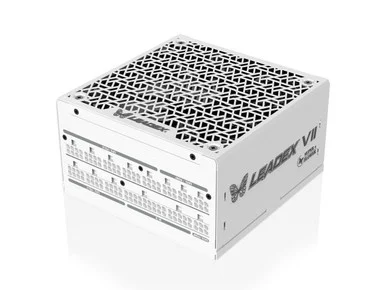

Super Flower Leadex VII XG 850W 80+ Gold White, Cybenetics Platinum, Full Modular, ATX 3.1 & PCIe 5.1,12VHPWR Cable (2x8pin-16pin Native Cables), Power Supply, FDB Fan, SF-850F14XG, White Version
- 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
- Tight Voltage Regulation (12 V, 5 V and 3.3 V) [ 0.5%]
- Cybenetics Platinum Certified, 89% &<91% overall efficiency (115 INPUT), 91% &<93% overall efficiency (230 INPUT)
- Intel ATX 3.0 Certified: Compliant with ATX 3.1 standard & PCIe Gen 5 ready and 16-Pin PCIe Gen 5 Cable (12V-2×6), resisting transient power spikes.
- Full modular design with all ribbon cables to maximize flexibility
- Product Dimensions: 5.9 x 5.9 x 3.4 inches
- Item Weight: 4.4 pounds
- Manufacturer: SUPER FLOWER
LEADEX VII XG is fully compatible with Intel ATX 3.0 & ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode ? 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA). ? New patented technology of Buckle (20+4) Pin connector (Patent No.: Taiwan M563575 ; China 7566010,USA) ? Innovative Design for gaming System & PSU protection 1. DC output +12V/+5V/+3.3Vremain stable 2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V 3. +12V Output With Exceptional Low Ripple Measurements 4. Low Output Voltage Ripple ? ECO-design 1. Auto & ECO Fan control 2. High efficiency on all rails, including 5VSB ? 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management. ? Cybenetics Platinum Certified, 89% &<91% overall efficiency (115 INPUT), 91% &<93% overall efficiency (230 INPUT) ? 80 PLUS Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load. ? 100% Japanese 105C Capacitors (Main Board & Modular Backpanel) ? Full Range Auto Voltage Detection Design 100V~240V (Active PFC) ? Comply With ATX 12V v3.0 & v3.1, EPS 12V v2.92 Specification. ? Comply With Energy Star Standard & EuP (Energy Using Products) Regulation ? Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection ? Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready) ? Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card ? More than 2,000 times On/Off test ? Lead-free Green Materials with RoHS / WEEE Compliance ? Perfect For Professional & High Performance Gaming System ? PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement. ? Complete Japanese Capacitors.
