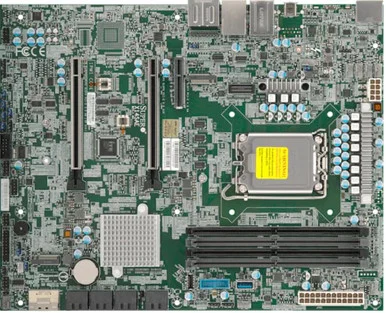

Supermicro MBDX14SAEB X14SAE LGA 1851 Workstation Motherboard DDR5 PCIe 5.0 Dual M.2 Dual LAN

Description

This item is brand-new, factory sealed.

Key Features
1. Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel V1 Socket) supported, CPU TDP supports Up to 125W TDP
2. Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
3.M.2 Interface:1 PCIe 4.0 x4 and 1 PCIe 5.0×4 (support M.2 Form Factor 2280 only)
M.2 Form Factor:2280/22110
M.2 Key:M-Key
4. 2 M.2 slots (1 PCIe 4.0 x4 from PCH, support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
5. 2 PCIe 5.0 x16 slots,
1 PCIe 4.0 x4 slot
6. A 2.5 Gigabit LAN with Intel Ethernet i226LM LAN controller
7. A 1 Gigabit LAN with Intel Ethernet i219LM LAN controller [AMT/vPro]
8. 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt 4.0 Type-C
*Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps
9. Intel W880 Controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
10.Supports Thunderbolt 4
11. Onboard TPM2.0
Optimized Servers
SYS-532AW-CPhysical Stats
Form Factor
ATXProcessor
CPU
Intel Core^TMUltra 9/7/5 Processors
Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
Core
Up to 24 coresSystem Memory
Memory Capacity
4 DIMM slots
Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MT/s
Note: Supports up to 192GB of DDR5 UDIMM with speeds of up to 5600MT/s with one DIMM single rank, or 4400MT/s with two DIMM dual rank in four memory slots
Memory Type
5600 MT/s Up to 256GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
8GB, 12GB, 16GB, 24GB, 32GB, 48GB, 64GB
UDIMM: 8GB, 12GB, 16GB, 24GB, 32GB, 48GB, 64GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
Chipset
Intel W880
SATA
8 SATA3 ports, RAID 0,1,5,10
1 SATA3 ports
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel I226LM Ethernet Controller
Single LAN with Intel PHY I219LM LAN controller, for AMT/vProInput / Output
SATA
8 SATA3 (6Gbps) port(s) Supports software RAID 0,1,5,10
USB
3 USB 3.2 Gen2 port(s) (3 rear type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C, 1 via header)
2 USB 3.2 Gen1 port(s) (2 headers)
1 USB 4 port(s) (1 rear type C Intel Thunderbolt^TM4)
Video Output
1 DP (DisplayPort) port(s), 1 Intel Thunderbolt^TM4 Type C (Shared w/ USB4/ DP2.1) port(s), 1 HDMI port(s) Supports up to 8K at 60Hz
Serial Port
1 COM Port(s) (1 header)
TPM
TPM TPM 2.0 onboardExpansion Slots
PCIe
1 PCIe 4.0 x4,
2 PCIe 5.0 x16 (support up to 16/NA or 8/8, slot 3 support bifurcation x4x4
M.2
M.2 Interface: 1 PCIe 5.0 x4, RAID 0 and 1, 1 PCIe 4.0 x4, RAID 0 and 1
Form Factor: 2280, 2280/22110
Key: M-Key, M-KeySystem BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.5
SMBIOS 3.8 or later
UEFI 2.9Management
Software
Supermicro Server Manager (SSM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) NewPC Health Monitoring
Voltage
VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V, +3.3V, +12V, CPU thermal trip support, UID, +1.8V CPU, Triple Cooling Zones
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control
5 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency OverclockingOperating Environment
Operating Temperature Range
0^oC – 50^oC (32^oF – 112^oF)
Non-Operating Temperature Range
-20^oC – -60^oC (-4^oF – 140^oF)Weight
3.00lb
Warranty Information
1 year
