Description
This item is brand-new, factory sealed.
Specifications

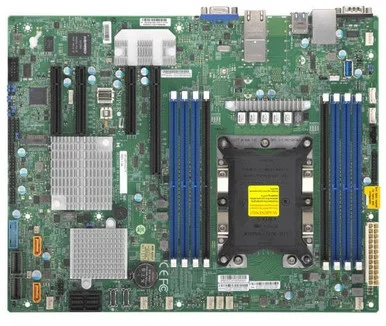

- Mfr Part Number:X11SPH-NCTF-O
- CPU:Single Socket P LGA3647
- Supports Intel Xeon Processor Scalable Family
- CPU TDP support 205W
- Up to 28 cores
- Chipset:Intel C622
- Memory:8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/3DS Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
- Slots:1x PCI-Express 3.0 x16 Slot (x16 or x8), 3x PCI-Express 3.0 x8 Slots (one x0 or x8, one runs at 4)
- SATA:10x SATA3 Ports, Support RAID 0, 1, 5, 10
- SAS:8x SAS3 Ports, Support RAID 0, 1, 10
- Video:ASPEED AST2500 BMC Graphics
- LAN:Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227
- Ports:5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x 10GbE LAN Ports
- Form Factor:ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
- RoHS Compliant
